The Ultimate Loading Ramp Guide: How to Stop the Tailgate Tumble

There is a specific kind of adrenaline that 4x4 owners know well, and it isn’t the fun kind. It’s that heart-in-mouth moment when you’re halfway up a loading ramp with a 300kg adventure bike, and the front wheels start to feel light.

Loading shouldn’t feel sketchy. Whether you are loading a dirt bike into a HiLlux or moving agricultural machinery onto a flatbed, the difference between a safe load and a trip to the emergency room comes down to two things: Geometry and Gear.

If you’ve been scouring forums or Reddit, you’ve likely seen the horror stories of ramps kicking out or snapped tailgates. To help you avoid becoming a viral loading fail video, we’ve put together this comprehensive guide to mastering the physics of the ramp, featuring the Hulk 4x4 Loading Ramp collection.

The Geometry Filter: The 1:4 Ratio Rule

The single biggest mistake people make is buying a ramp that is too short for their vehicle's height. In the world of 4x4s, where lifted suspensions and 35-inch tyres are common, a standard ramp often turns into a steep, dangerous ladder. If the angle is too steep, you risk flipping backward or bottoming out your equipment on the tailgate hinge.

To calculate the perfect ramp length, professionals use the 1:4 Ratio Rule.

For every 30cm of vertical rise (from the ground to your tailgate), you need at least 1.2m of ramp length.

How to Measure Your Rig:

1. Find the Rise: Measure from the ground to the flat surface of your open tailgate.
2. Do the Maths: If your tailgate height is 90cm (common for lifted utes), you should be looking for a ramp that is at least 3.6m long to maintain a safe, manageable 15-degree angle.

If you are running a high-clearance vehicle, the Hulk 4x4 Aluminium Ramps are the gold standard here, offering lengths up to 3.8m to flatten that slope.

Choosing Your Tribe: Moto, ATV, or Agri?

The surface, width, and arch of your ramp should be dictated by exactly what you are loading. Using the wrong tool for the job is how accidents happen.

The Moto Tribe

Motorcycle ramps need to be lightweight, yet offer uncompromising traction. The Hulk 4x4 Motorcycle Loading Ramp is a firm favourite because it balances heavy-duty strength with clever portability. Whether you’re loading a sleek road bike or a mud-caked dirt bike, this ramp is engineered for the task.

At 6.3kg, it’s built from reinforced aluminium that’s tough enough to handle a 200kg load (or 400kg per pair), yet remains manageable for solo loading. The fold-flat design (reducing from 1.82m to just 93cm) means it slides easily into your ute tub or garage without taking up precious space. Crucially, it includes a safety strap to lock the ramp to your vehicle, preventing the dreaded kick-back while your bike is in transit. Plus, the scratch-resistant finish ensures it keeps looking professional, no matter how many times you head out to the trails.

The ATV and UTV Tribe

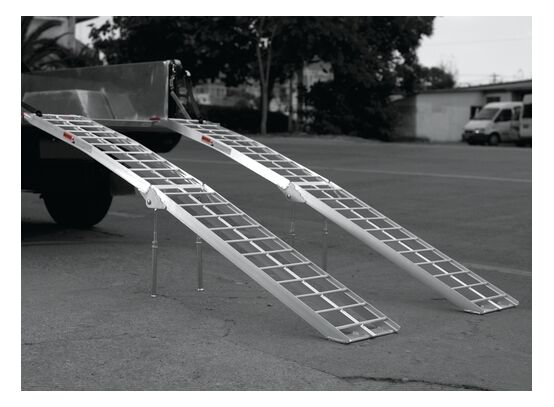

Stability is the absolute priority when you’re driving a four-wheeler up into a tray. You need a setup that won't shift independently or buckle under the concentrated weight of a quad or side-by-side. The HULK 4x4 ATV Loading Ramps are engineered specifically for this wide-track tribe, offering a massive combined capacity of 870kg (435kg per ramp).

What sets these apart from generic rails is the adjustable leg supports. These stabilising legs provide exceptional sturdiness, preventing the bounce that often makes loading a heavy UTV or golf buggy feel sketchy. At 2.26m long, they offer a shallow, safe approach angle for lower vehicles like ride-on mowers, while the rubber-coated tips ensure your tailgate remains scratch-free. Despite their heavy-duty rating, each ramp weighs only 8kg and folds down to a compact 1.16m, making them easy to toss in the back once the gear is loaded. For total peace of mind, they also come with safety straps to lock the ramps in place and eliminate the risk of kickback.

The Garden and Utility Tribe

If you’re loading a ride-on mower or heavy landscaping gear, you usually face the clearance problem. Mower decks are notoriously low, and using a standard straight ramp often results in the deck getting hung up or grounded on the tailgate hinge. For serious machinery, you need the industrial-grade HULK 4x4 Agriculture Loading Ramp (HU2423).

At 2.3m long and a generous 440mm wide, these ramps provide the surface area and shallow angle needed for wide, low-clearance equipment. But the real headline is the strength: these heavy-duty reinforced aluminium rails boast a massive capacity of 2,000kg per ramp (or 4,000kg per pair). Despite this incredible weight rating, each ramp remains manageable at 17.3kg. Unlike lighter consumer ramps, these are scratch-resistant and feature a dedicated safety pin system to lock the ramp to your trailer or truck, ensuring zero movement while you’re moving tonnes of machinery. If you’re loading tractors, commercial zero-turns, or heavy ag equipment, this is the hardware that turns a risky job into a routine one.

Steel vs. Aluminium

A recurring debate on 4x4 Facebook groups is whether to go with the traditional toughness of steel or the modern portability of aluminium.

• Aluminium: Most of the Hulk 4x4 range is crafted from heavy-duty reinforced aluminium. It’s the superior choice for Australians because it doesn't rust in our salty coastal air. It’s also significantly lighter. For example, a Hulk 4.0m Agri ramp can handle a 4,000kg per pair load while remaining light enough for one person to maneuver.
• Steel: Steel is excellent for static use or permanent workshop setups. The Hulk 4x4 2-in-1 Foldable Steel Ramps are fantastic for smaller tasks, but if they live in your ute tub, you’ll need to keep them oiled to prevent surface rust.

Stopping the Kick-Out

The most dangerous moment of loading occurs when the power from your wheels pushes the ramp backward, away from the tailgate. This kick-out causes the vehicle to drop instantly, often crushing the tailgate or the operator.

How to secure your gear like a pro

• The Safety Strap Method: Every high-quality Hulk 4x4 ramp comes with a safety strap or pin. Use it. Attach the strap from the midpoint of the ramp to a secure point on your vehicle (like the hitch receiver or a tie-down point). Tighten it until the ramp is pulled firmly into the truck.
• Terrain Hacks: If you’re worried about the angle, don't just wing it. Find a slight incline or a curb. Back your rear wheels into the dip or against the curb to reduce the vertical rise. This effectively makes your ramp longer and safer.

Don't Let Your Gear Fail You

Loading ramps are set and forget gear for many, but a quick 60-second check can save your chassis (and your shins).

• Inspect the Gussets: Look for hairline cracks in the welds, especially if you’ve been loading near the weight limit.
• Clean the Rungs: Mud, oil, and grease are the enemies of traction. A quick spray-down after a weekend in the bush ensures your next load is a grippy one.
• Secure Storage: Ramps bouncing around in a metal tub can develop stress fractures over time. Secure them with Hulk 4x4 Tie-Down Straps to keep them silent and safe.

Loading doesn’t have to be stressful

By respecting the 1:4 ratio, choosing the right material for your environment, and always using safety straps, you can turn a sketchy job into a routine one.

Ready to upgrade your loading setup? Explore the full Hulk 4x4 Loading Ramp collection and find the perfect fit for your vehicle and your gear. Play it safe, load it right, and get back to the tracks.
